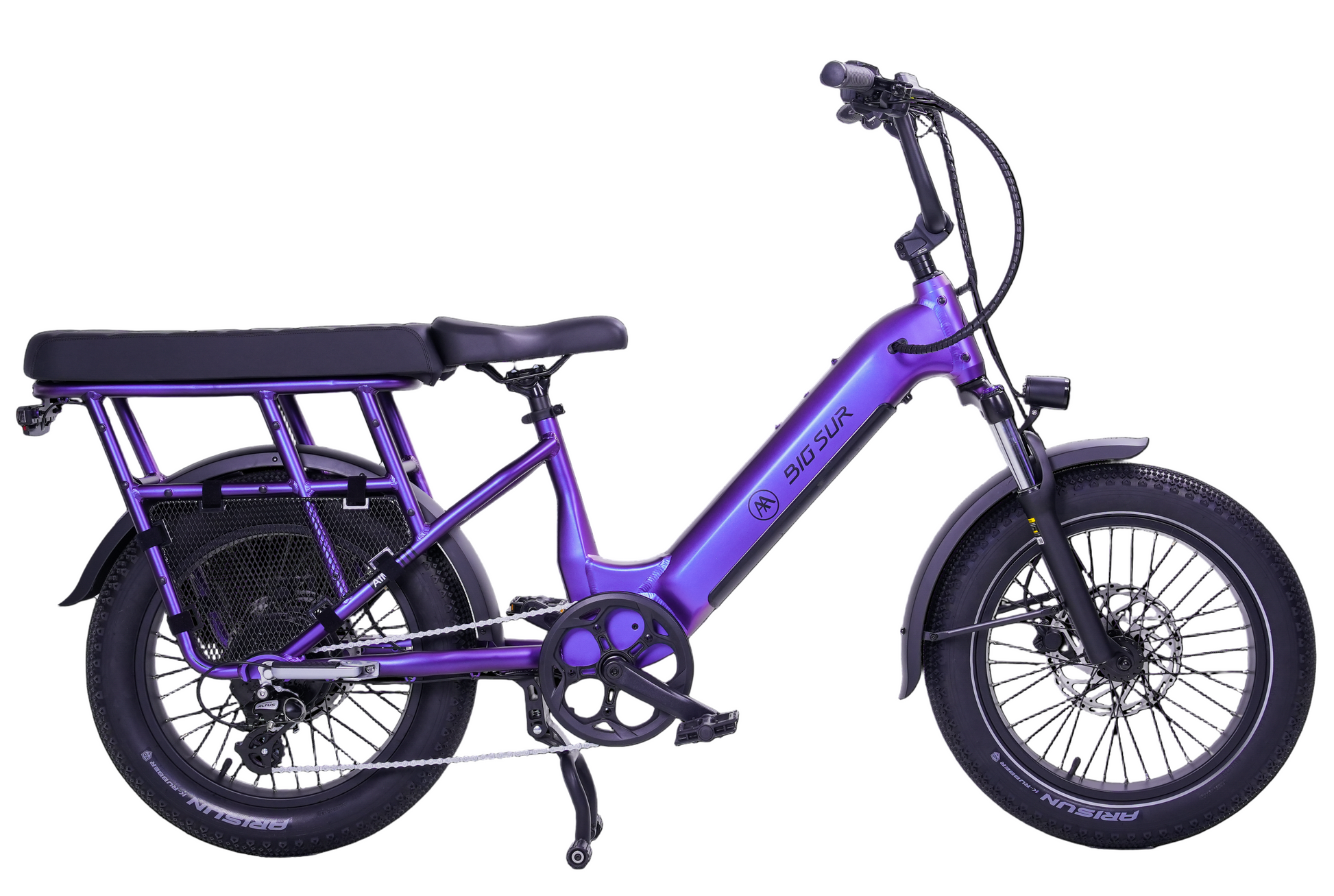

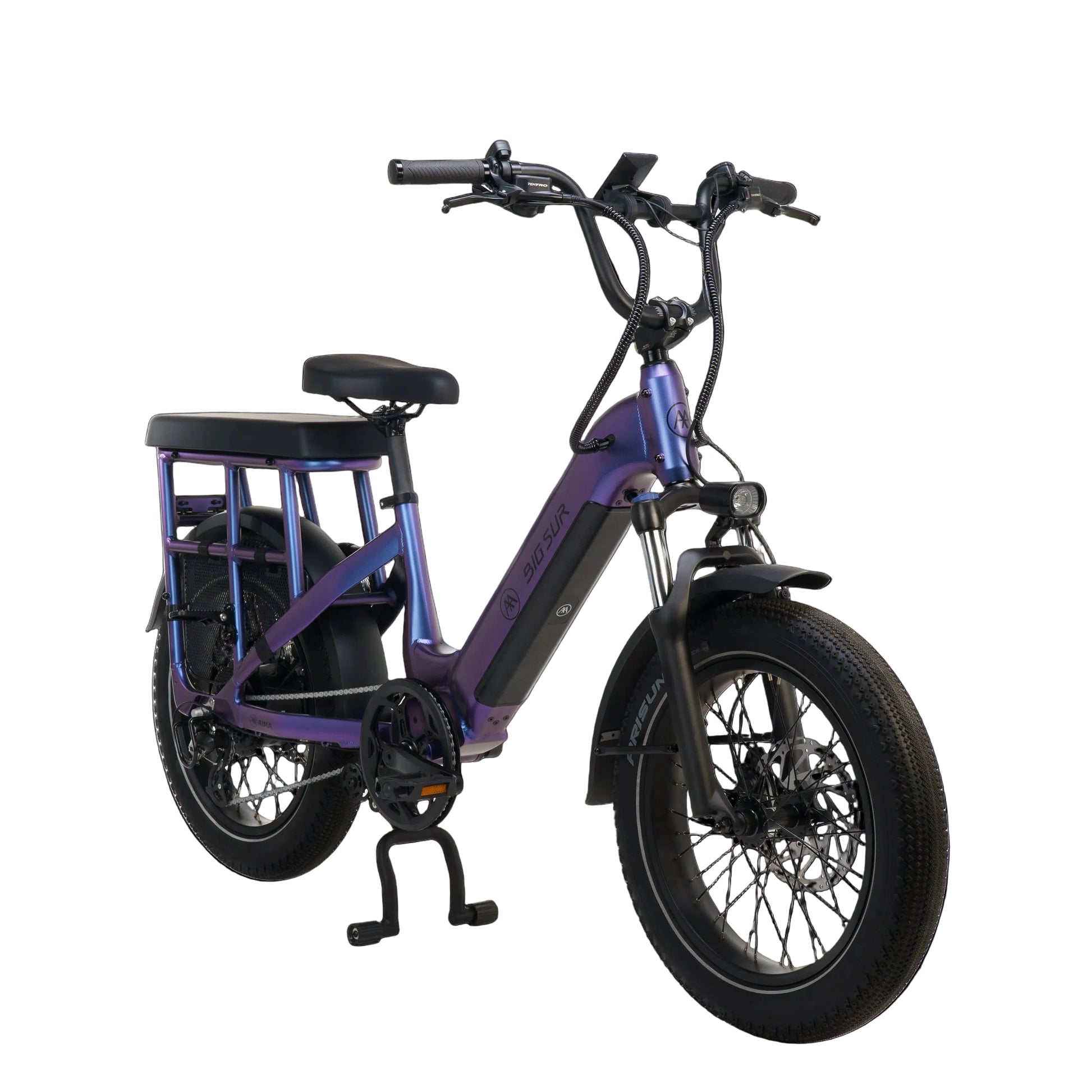

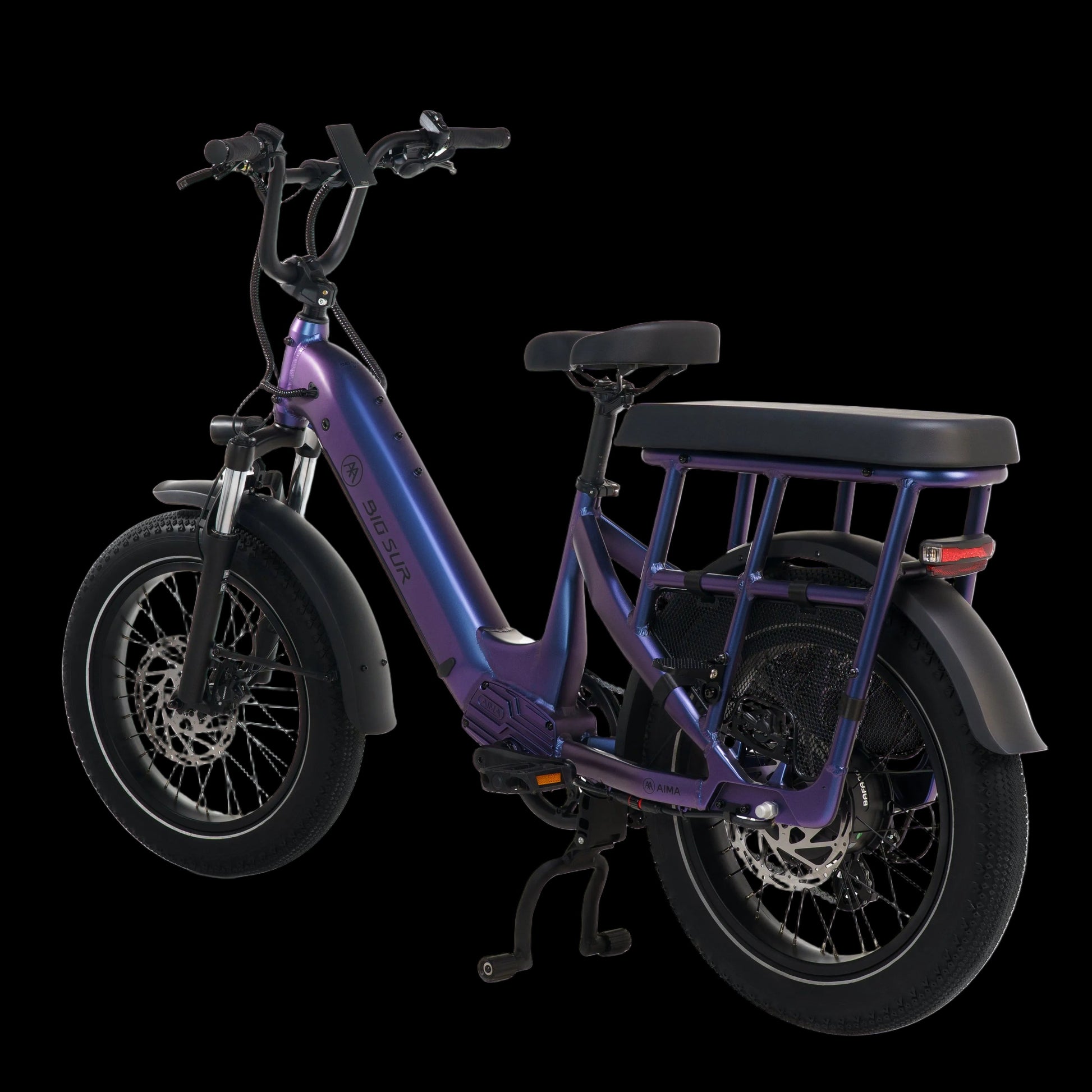

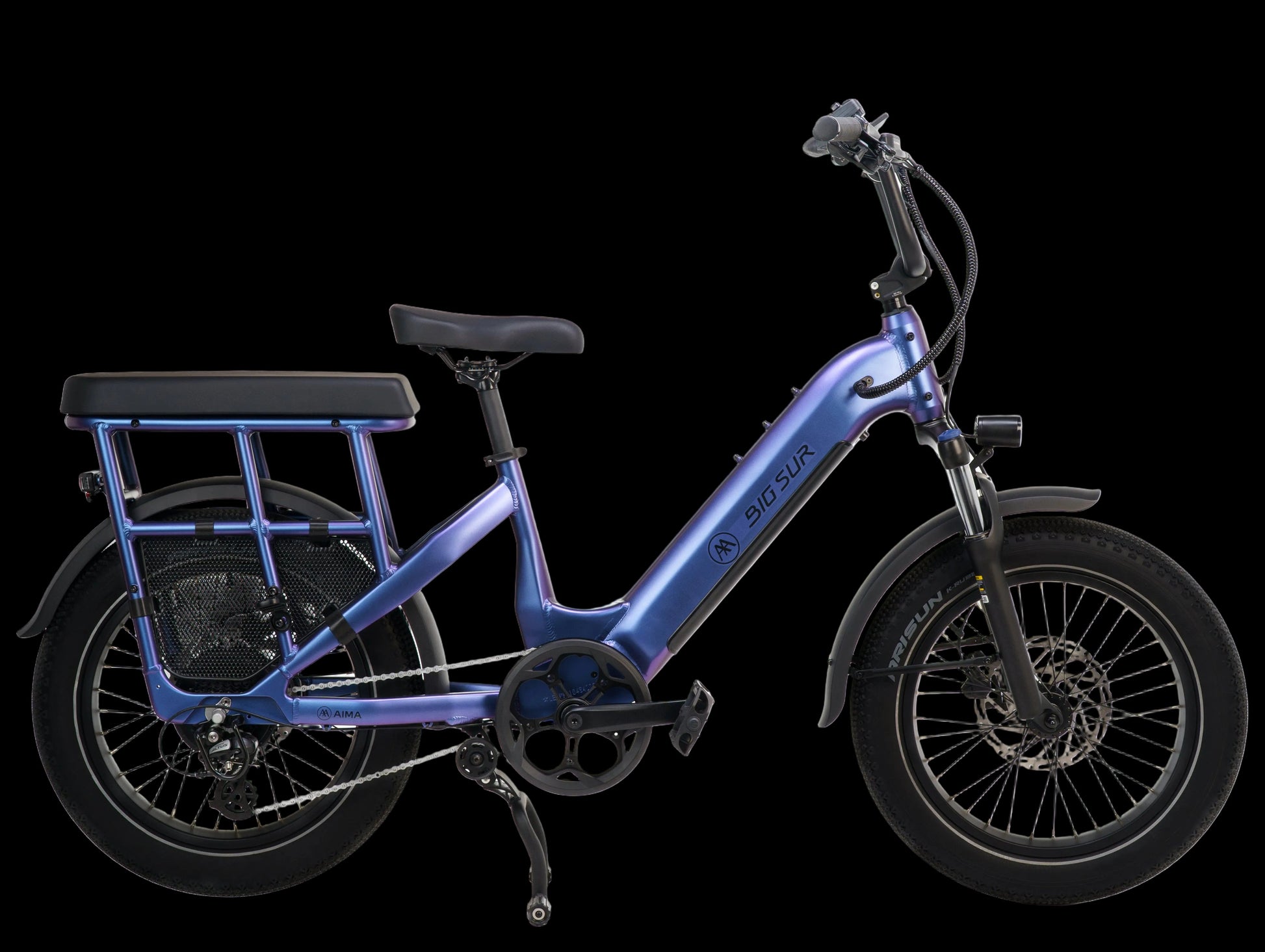

AIMA Big Sur Cargo 15A 20" E-Bike

• Unique Compact Step-Thru Aluminum frame, integral Smooth Welding
• Reliable Pedal Assist System, provided by Bafang
• Powerful Rear Hub Motor, 48V, 500W, Max Torque 80Nm
• High capacity Lithium-ion Battery, 48V, 15Ah (720Wh)
• Torque Sensor
• Integrated Driving Lights
• Shimano Drivetrain
• Tektro E-Brakes, Hydraulic, 203mm Rotors
• Full Length Fenders and Rear Rack included

Frame: Unique Compact Step-Thru Hydroformed Aluminum alloy frame, Integral Smooth Welding, Internal Cable Routing,Integrated bearings, 100mm BSA, Replaceable forged alloy derailleur hanger

Fork: Zoom, 80mm travel Suspension Fork, Locking Lever, Spring Preload Adjustment

Stem: Forged Alloy, 1-1/8” Threadless

Handlebar: Alloy, Riser, Ø31,8mm, Width: 680mm

Grips: Comfort Ergo, Bolt-On

Seatpost: Alloy, Ø30.4mm Quick Release clamp

Saddle: Comfort Wide, Tear-Resistant, Integrated Springs and Lifting Handle

Shifters: Shimano Acera ST-M315, Rapidfire, 8 Speeds

Derailleur: Shimano Altus RD-M310, with Protecting Cage

Chainring: Direct Mount, Splined alloy spider, 52T

Cassette: Shimano HG, Megarange 11-34T

Chain: PYC, 1/2” x 3/32”

Pedals: Sure Grip Platform, Alloy, 9/16’’

Brakes: Tektro HD-E3520, Hydraulic Disc Brakes,with Power cut-off sensor

Rotors: Stainless Steel TR-52 Anti Vibration 203mm 6-Bolt rotors

Rims: 20’’, 36H, Wide Profile, Alloy, Schrader

Hubs: Front: Alloy, 135mm, Bolt-On, 6-Bolts Disc Mount, Rear: (See Motor)

Spokes: 13G Stainless Steel, Black

Tires: 20 x 4.0’’, Retro Tan Wall, Reflective Side Strips, E-Bike Rated Casing

Driving Lights: Front: Big Headlight, White, 100 LUX, Connected to battery, Rear: Semi-Integrated Red LED driving light, Connected to battery

Accessories: Alloy Cargo Rack, SureFix System Full-wrapping Fenders, Direct Mount Alloy E-Bike rated Kickstand

Listed Weight: 74 lbs (33,5 kg)

Max Payload: 400 lbs (180 kg)

Specifications are subject to change without notice. Most current and updated information is always available on AIMA E-Bikes Canadian website (www.aimamobility.ca)

Listed weights are based off pre-production bikes and may vary in production.

Motor: Bafang G0270 48V Custom Brushless Rear Hub, 500W, 36H*13G

Battery: Bafang BT F400, Semi-Integrated, 720Wh Capatity Lithium-ion, High Performance LG cells

Display: Bafang DP C271.CAN New Generation Smart Color Backlit LCD, G5.4, IP65 Connector

Sensor: Bafang SR PA242 Torque Sensor, JIS Bottom Bracket, BSA External Cups

Throttle: On Demand Thumb Press Button, Integrated Electronic Horn Button

Controls: Power / PAS level control pad

Charger: AIMA 48V Fast Charge

More on Bafang Technology

• Class 2 E-Bike, 500W (Software Restricted), 32km/h max assist.,
• UL 2849
• ISO 4210

See AIMA E-Bikes UL 2849 Certificates

See Bafang UL Certificates
