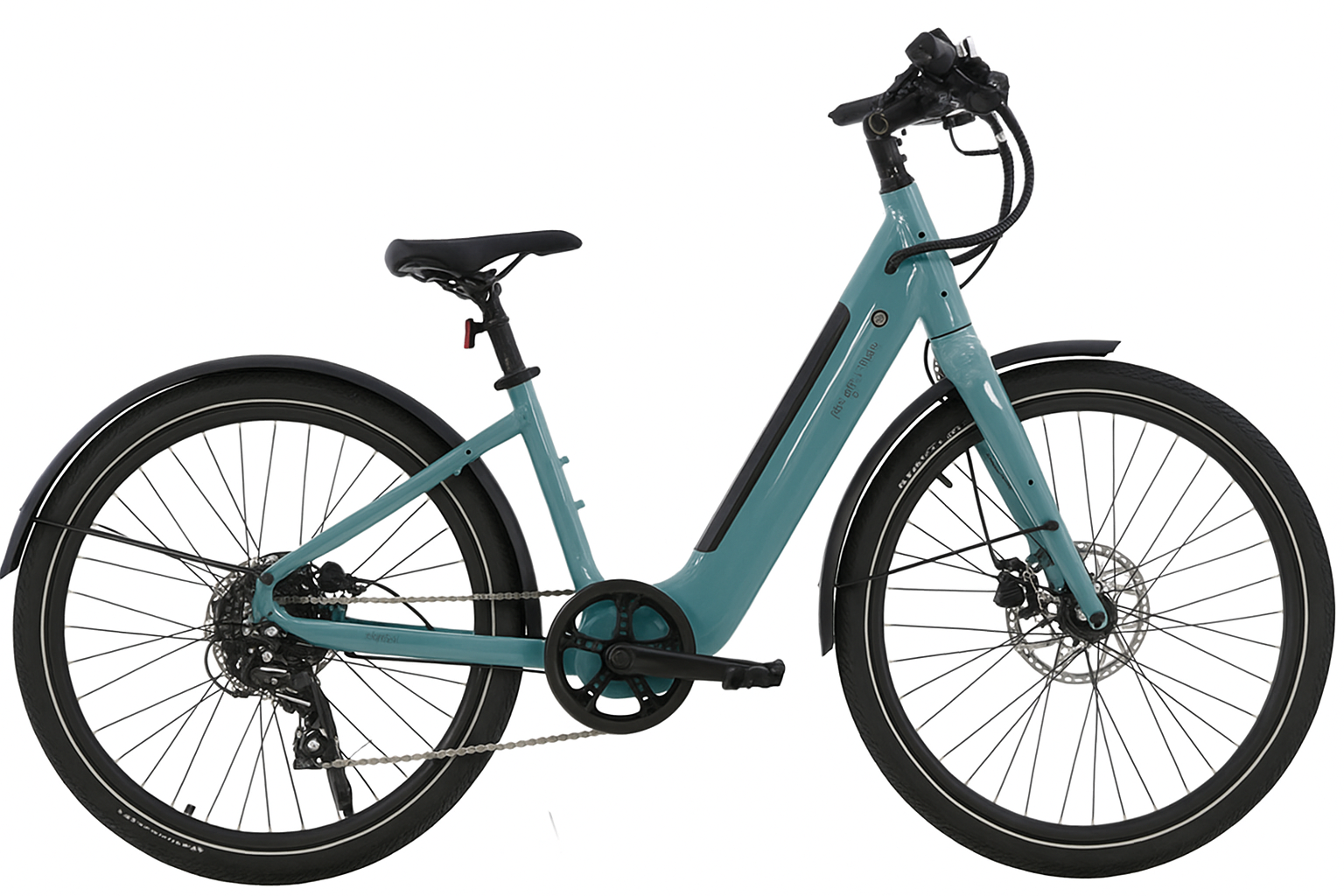

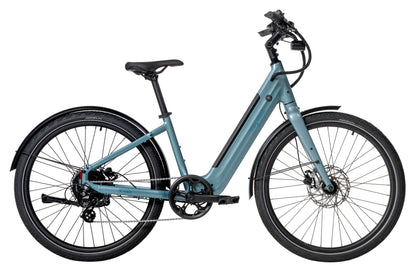

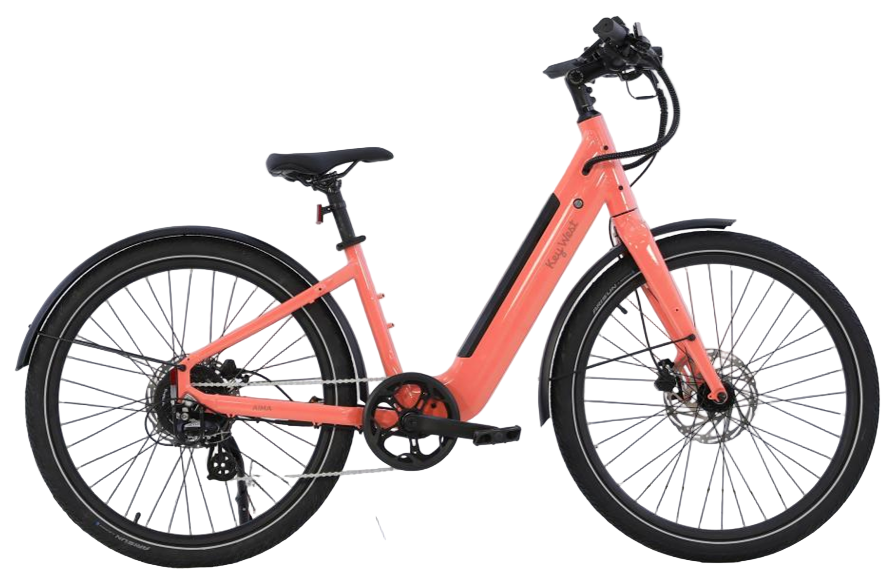

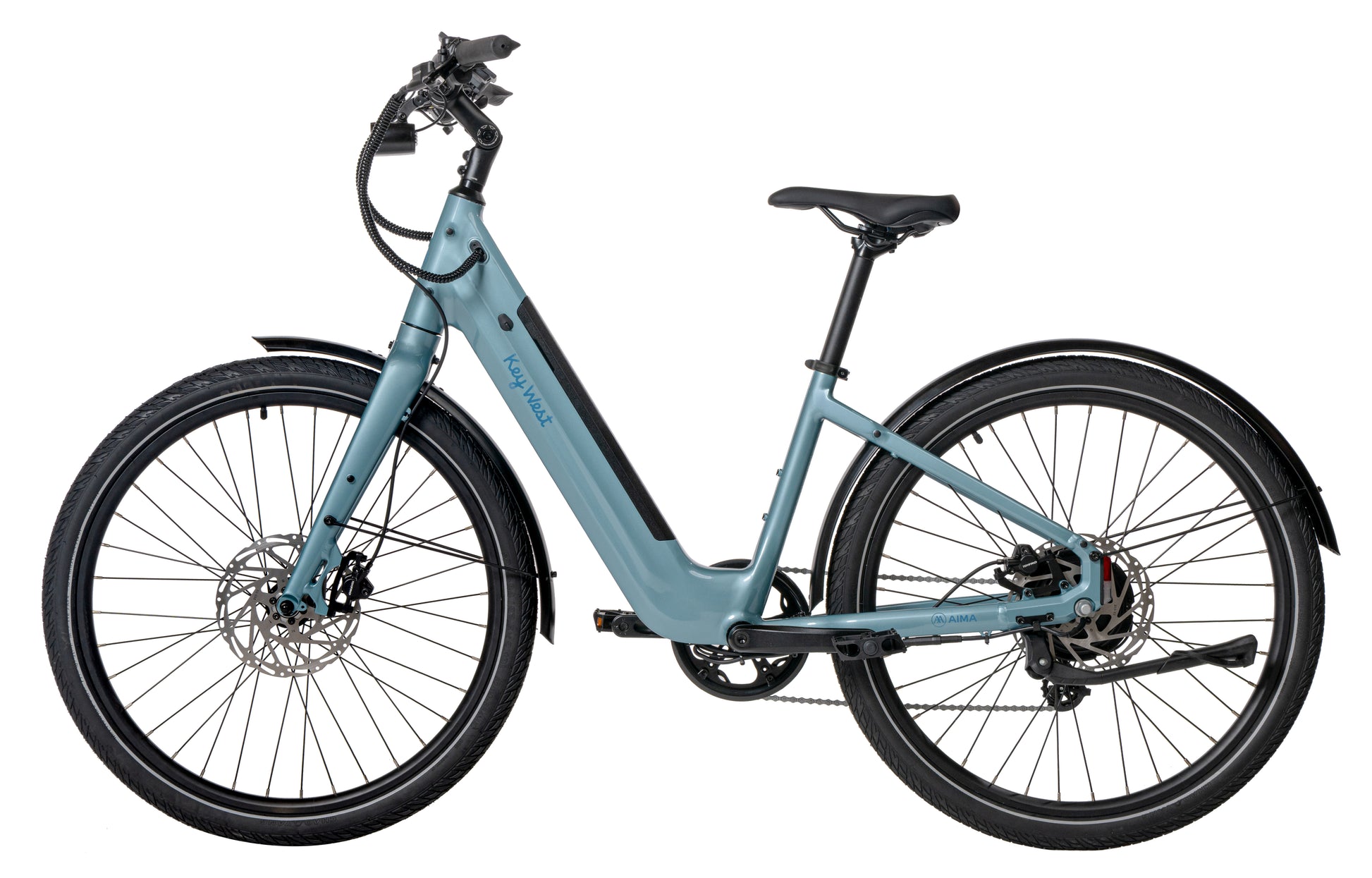

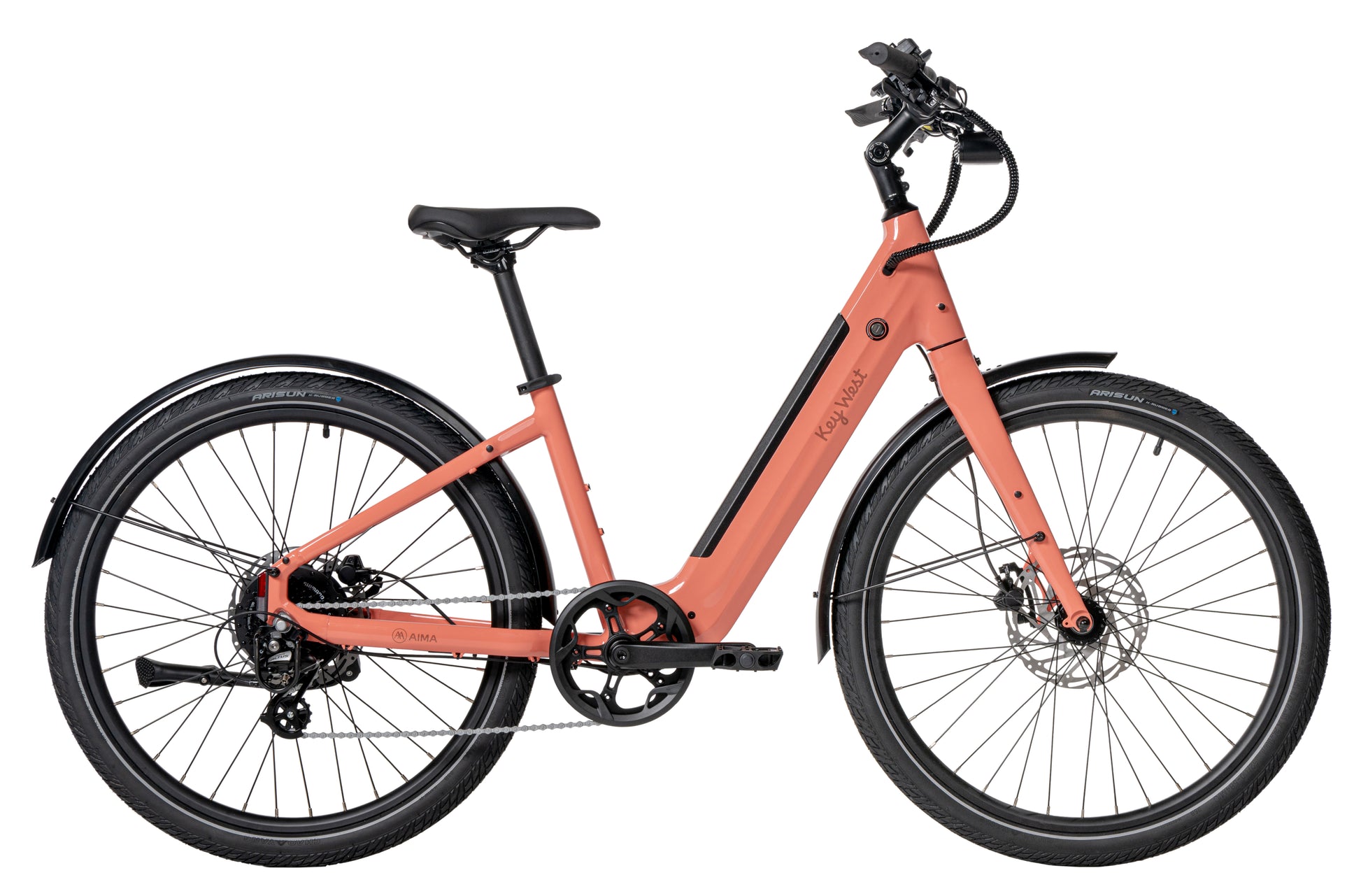

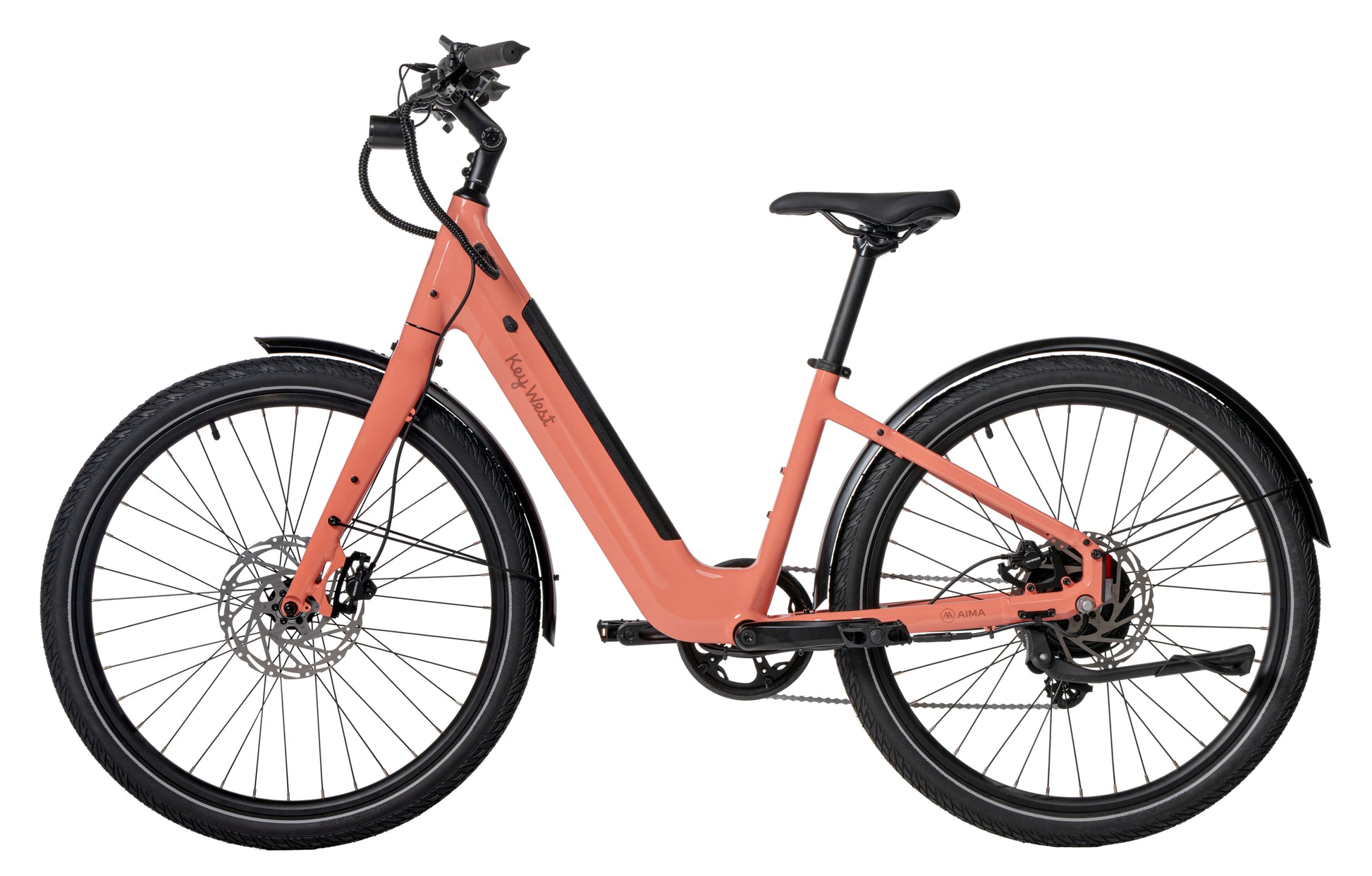

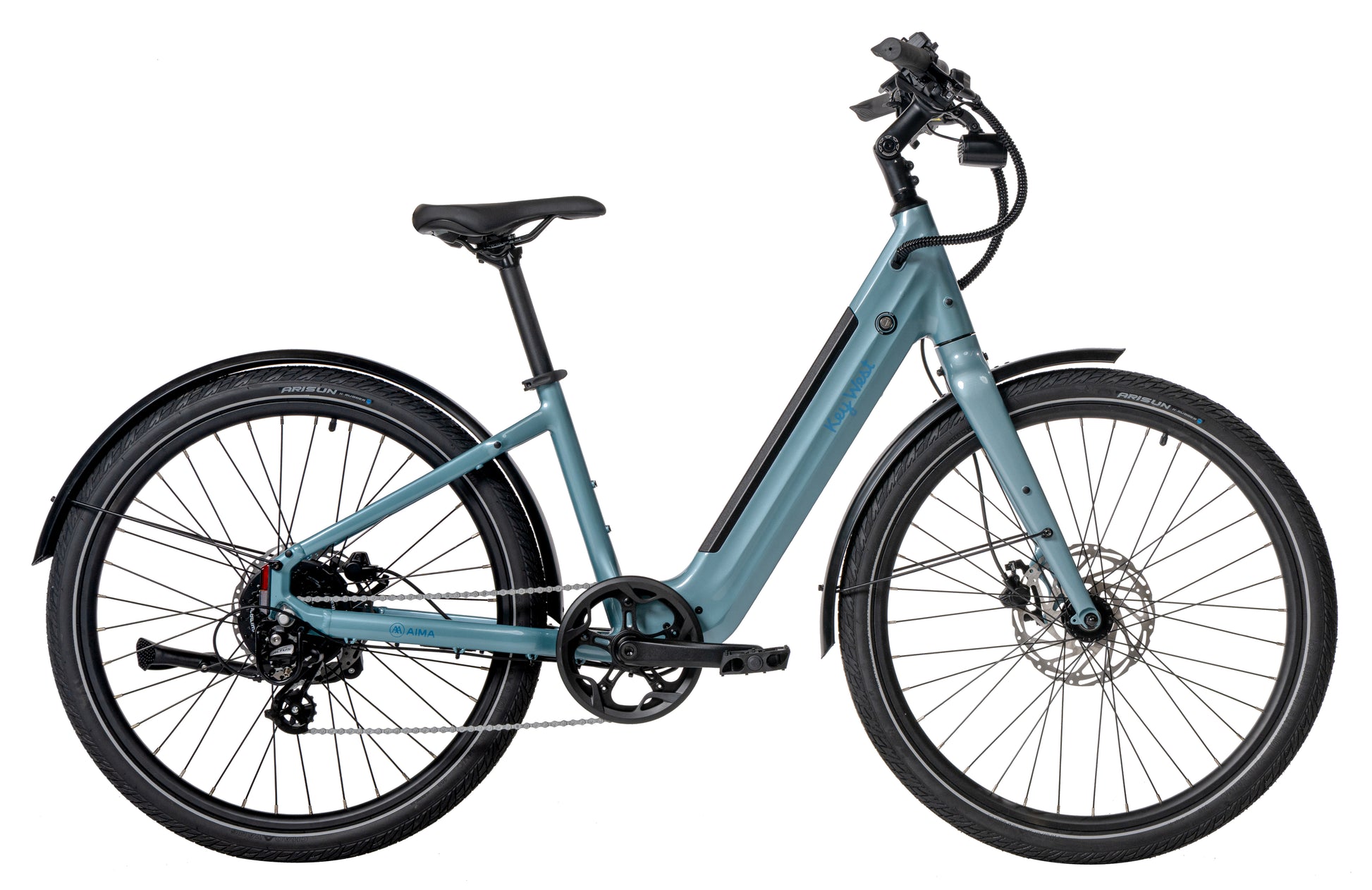

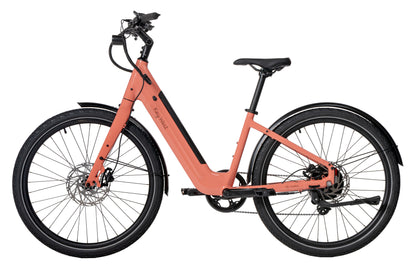

AIMA Key West E-Bike
AIMA Key West E-Bike
AIMA's lightest and best value E-Bike, the Key West is designed for comfortably cruising on scenic bike lanes as well as freely commuting around town with style. Very capable with acceleration and on hills, its UL certified power system is backed by Bafang, meeting modern saferty standard and ensuring long term reliability. Vivid colors and exceptional craftmanship makes this E-Bike a category winner.
Features & Benefits
Features & Benefits
- Unique Lightweight Step-Thru Aluminum frame with integral Smooth Welding
- Comfortable and Stable Handling thanks to an adjustable position and a geometry that's laterally stiff yet compliant vertically
- Oversized Head Tube Bearings coupled with a Suspension fork using a Thru-Axle provides smooth, efficient and predictable braking
- Reliable Pedal Assist System, provided by Bafang
- Powerful Rear Hub Motor, 48V, 500W, Max Torque 70Nm
- High capacity Lithium-ion Battery, 48V, 15Ah (720Wh)
- Torque Sensor
- Integrated Driving Lights & Blinkers Turn Signals
- Shimano Drivetrain
- Tektro E-Brakes, Hydraulic, 203mm Rotors
- Full Length Fenders included
Bike Specifications
Bike Specifications
Frame: Unique Lightweight Step-Thru Hydroformed Aluminum alloy frame, Integral Smooth Welding, Internal Cable Routing,Oversized Taper Headtube with integrated bearings, 83mm BSA, Replaceable forged alloy derailleur hanger,Fully Integrated rear Dropouts with LED Rear light / Brake / Turn Signal lights (remotely controled)
Fork: SR Suntour Mobie A32, 75mm travel Suspension Fork, Locking Lever, Spring Preload Adjustment, Oversized Taper Steerer, 100x15mm Thru-Axle
Stem: Forged Alloy, Adjustable Angle, 1-1/8” Threadless, with Integrated Front Light Mount
Handlebar: City Handlebar, Riser, Ø31,8mm, Width: 680mm
Grips: Comfort, Retro Inspired
Seatpost: Alloy, Ø30.4mm Quick Release clamp
Saddle: Comfort Wide Retro Inspired Brown, Tear-Resistant, Integrated Springs and Lifting Handle
Shifters: Shimano Acera ST-M315, Rapidfire, 8 Speeds
Derailleur: Shimano Altus RD-M310, with Protecting Cage
Chainring: Direct Mount, Splined alloy spider, 52T
Cassette: Shimano HG, Megarange 11-34T
Chain: PYC, 1/2” x 3/32”
Pedals: Sure Grip Platform, Alloy, 9/16’’
Brakes: Tektro HD-E3520, Hydraulic Disc Brakes,with Power cut-off sensor
Rotors: Stainless Steel TR-52 Anti Vibration 203mm 6-Bolt rotors
Rims: 27.5’’, 36H, MTB-grade Disc specific double wall profile, Schrader
Hubs: Front: Alloy, 100x15mm Thru-Axle, Sealed Bearings, 6-Bolts Disc MountRear: (See Motor)
Spokes: 13G Stainless Steel, Black
Tires: Chao Yang, 27.5 x 2.6’’, Retro Tan Wall,Reflective Side Strips, E-Bike Rated Casing
Driving Lights: Front: Semi-Integrated white driving light, 600 lumens, Connected to battery Rear: Integrated red driving light / Active braking and Yellow turning signal lights (remotely controlled)
Accessories: SureFix System Full-wrapping Fenders, Direct Mount Alloy E-Bike rated Kickstand
Listed Weight: 64 lbs (29 kg)
Max Payload: 400 lbs (180 kg)
Specifications are subject to change without notice. Most current and updated information is always available on AIMA E-Bikes Canadian website (www.aimamobility.ca)
Listed weights are based off pre-production bikes and may vary in production.
Pedal Assist System
Pedal Assist System
Motor: Bafang G0270 48V Custom Brushless Rear Hub, 500W, 36H*13G
Battery: Bafang BT F440, Semi-Integrated, 720Wh Capatity Lithium-ion, High Performance LG cells
Display: Bafang DP C271.CAN New Generation Smart Color Backlit LCD, G5.4, IP65 Connector
Sensor: Bafang SR PA242 Torque Sensor, JIS Bottom Bracket, BSA External Cups
Throttle: On Demand Thumb Press Button
Controls: Left Side: Power / PAS level / Driving Lights Right Side: Blinkers Turn Signal Lights / Electronic Horn
Charger: AIMA 48V Fast Charge
Certifications
Certifications
- Class 2 E-Bike, 500W (Software Restricted), 32km/h max assist.,
- UL 2849
- ISO 4210
Geometry
Geometry
| Small | Medium | |||
| metric | inch | metric | inch | |
| Recommended Rider's Height | 144-170 cm | 4'9-5'7 | 170cm + | 5'7 + |
| Standover Height | 394 mm | 15,5" | 394 mm | 15,5" |
| Saddle to Ground Height (Min.) | 77 cm | 30,3" | 82 cm | 32,3" |
| Saddle to Ground Height (Max.) | 96 cm | 37,7" | 100 cm | 39,6" |
| Frame Size | 406 mm | 16" | 457 mm | 18" |
| Head Tube Length | 170 mm | 6,7" | 170 mm | 6,7" |
| Effective Top Tube | 635 mm | 25" | 635 mm | 25" |
| Reach | 422 mm | 16,6" | 422 mm | 16,6" |
| Stack | 655 mm | 25,8" | 655 mm | 25,8" |
| Head Tube Angle | 67,5 | 67,5 | 67,5 | 67,5 |
| Seat Tube Angle | 72 | 72 | 72 | 72 |
| Wheelbase | 1220 mm | 48" | 1220 mm | 48" |
| Chainstays | 495 mm | 19,5" | 495 mm | 19,5" |
| BB Height | 305 mm | 12" | 305 mm | 12" |

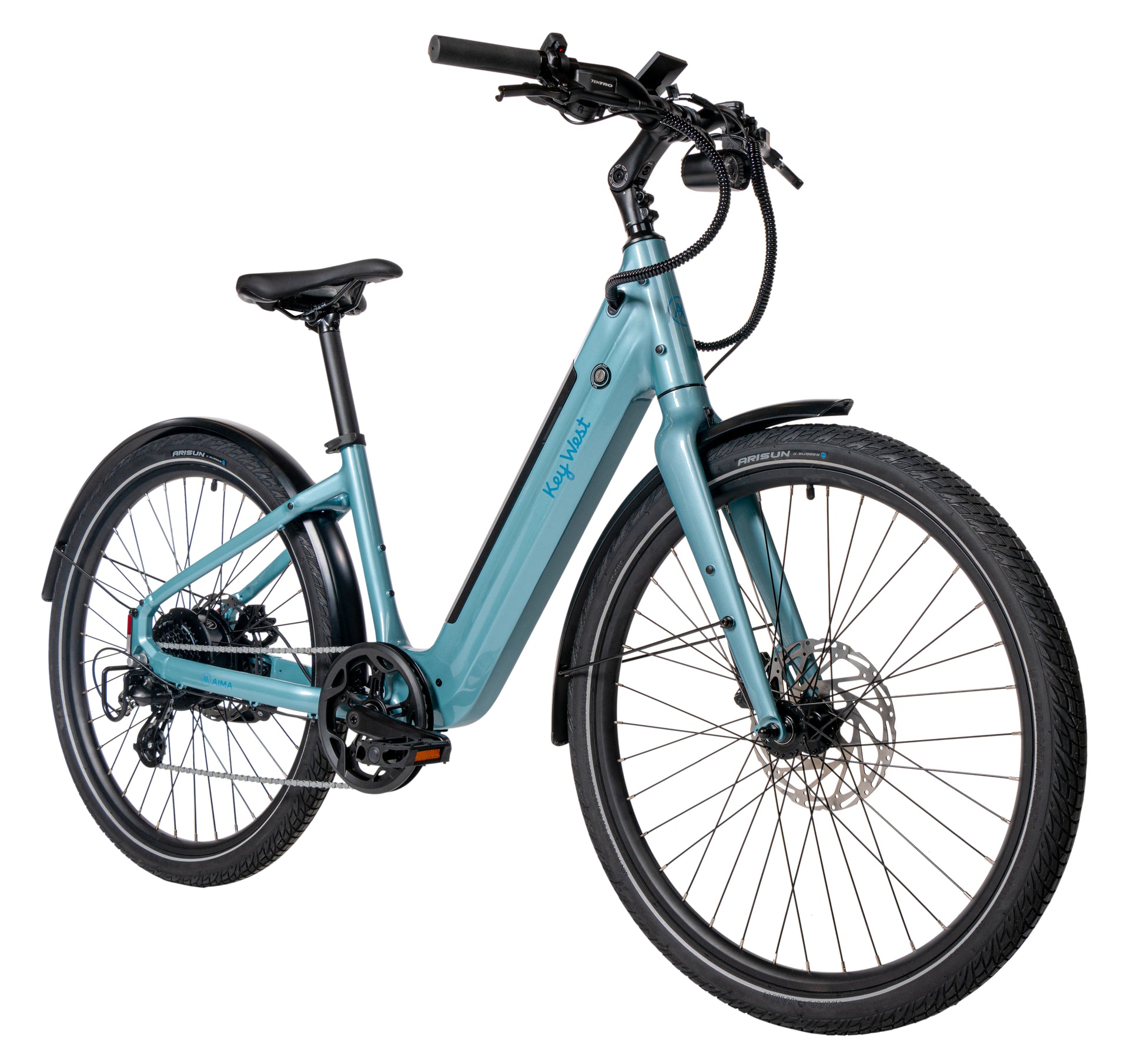

files/AIMA_Key_West_Angle_Blue.jpg
